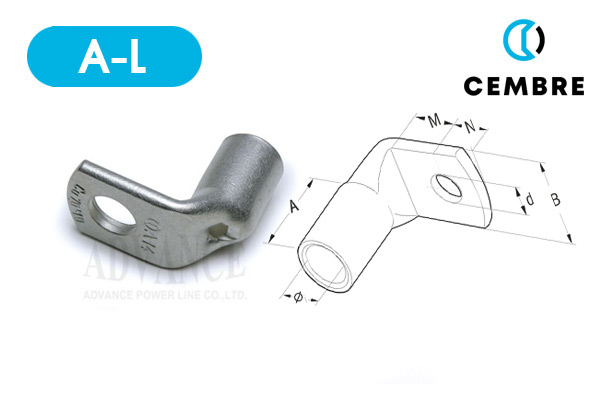

| A-L : หางปลาชนิดหนา 90 องศา |
| Cond.Size Sqmm Low std./ flexible | Ø Stud mm. | Ref. | Dimensions mm. | Quantity Box/Bag | Price / pcs | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Øi | B | M | N | L | d | ||||||
| 6 | 6 | A1-L 6 | 3.6 | 11.0 | 7.0 | 6.0 | 9.5 | 6.4 | 2000/100 | 35.97 |
|
| 10 | 5 | A2-L 5 | 4.6 | 10.0 | 6.5 | 6.0 | 10.5 | 5.3 | 1500/100 | 38.26 |
|
| 6 | A2-L 6 | 4.6 | 11.0 | 7.0 | 6.0 | 10.5 | 6.4 | 1500/100 | 38.65 |
||
| 8 | A2-L 8 | 4.6 | 15.0 | 9.0 | 8.0 | 10.5 | 8.4 | 500/100 | 40.56 |
||
| 16 | 5 | A3-L 5 | 5.8 | 11.5 | 6.5 | 6.0 | 12.0 | 5.3 | 1000/100 | 39.79 |
|
| 6 | A3-L 6 | 5.8 | 11.5 | 7.0 | 6.0 | 12.0 | 6.4 | 1000/100 | 39.41 |
||
| 8 | A3-L 8 | 5.8 | 15.0 | 9.0 | 8.0 | 12.0 | 8.4 | 1000/100 | 41.71 |
||
| 10 | A3-L 10 | 5.8 | 18.0 | 11.0 | 10.0 | 12.0 | 10.5 | 500/100 | 43.62 |
||
| 25 | 6 | A5-L 6 | 7.0 | 14.0 | 7.0 | 6.0 | 13.0 | 6.4 | 500/100 | 46.30 |
|
| 8 | A5-L 8 | 7.0 | 15.0 | 9.0 | 8.0 | 13.0 | 8.4 | 500/100 | 53.95 |
||
| 10 | A5-L 10 | 7.0 | 18.0 | 11.0 | 10.0 | 13.0 | 10.5 | 500/100 | 55.10 |
||
| 35 | 25 | 6 | A7-L 6 | 8.9 | 17.0 | 7.0 | 6.0 | 15.5 | 6.4 | 500/100 | 65.81 |
| 8 | A7-L 8 | 8.9 | 17.0 | 9.0 | 8.0 | 15.5 | 8.4 | 300/100 | 68.11 |
||
| 35 | 10 | A7-L 10 | 8.9 | 19.0 |
11.0 | 10.0 | 15.5 | 10.5 | 400/100 | 69.64 |
|
| 12 | A7-L 12 | 8.9 | 21.0 | 14.0 | 12.0 | 15.5 | 13.2 | 300/100 | 72.32 |
||
| 50 | 35 | 6 | A10-L 6 | 10.0 | 19.0 | 8.0 | 7.0 | 18.5 | 6.4 | 300/100 | 75.38 |
| 8 | A10-L 8 | 10.0 | 19.0 | 9.0 | 8.0 | 18.5 | 8.4 | 300/100 | 78.36 |
||
| 50 | 10 | A10-L 10 | 10.0 | 20.0 | 11.5 | 9.5 | 18.5 | 10.5 | 200/50 | 81.12 |
|
| 12 | A10-L 12 | 10.0 | 21.0 | 12.0 | 12.0 | 18.5 | 13.2 | 200/50 | 85.32 |
||
| 70 | 50 | 8 | A14-L 8 | 11.3 | 21.0 | 9.0 | 8.0 | 20.0 | 8.4 | 200/50 | 91.83 |
| 10 | A14-L 10 | 11.3 | 21.0 | 11.0 | 10.0 | 20.0 | 10.5 | 200/50 | 95.66 |
||
| 70 | 12 | A14-L 12 | 11.3 | 22.0 | 14.0 | 12.0 | 20.0 | 13.2 | 150/50 | 101.00 |
|
| 95 | 70 | 8 | A19-L 8 | 13.5 | 25.0 | 9.0 | 8.0 | 24.5 | 8.4 | 100/25 | 130.53 |
| 10 | A19-L 10 | 13.5 | 25.0 | 11.0 | 10.0 | 24.5 | 10.5 | 100/25 | 134.40 |
||
| 95 | 12 | A19-L 12 | 13.5 | 25.0 | 14.0 | 12.0 | 20.0 | 13.2 | 100/25 | 140.41 |
|
| 120 | 95 | 10 | A24-L 10 | 15.2 | 28.5 | 11.0 | 10.0 | 25.5 | 10.5 | 50/25 | 158.87 |
| 120 | 12 | A24-L 12 | 15.2 | 28.5 | 14.1 | 12.0 | 25.5 | 13.2 | 50/25 | 166.60 |
|
| 150 | 120 | 10 | A30-L 10 | 16.7 | 31.5 | 13.0 | 11.0 | 28.5 | 10.5 | 50/25 | 244.75 |
| 150 | 12 | A30-L 12 | 16.7 | 31.5 | 16.0 | 14.0 | 28.5 | 13.2 | 50/25 | 317.75 |
|
| 185 | 150 | 10 | A37-L 10 | 19.2 | 31.5 | 13.0 | 11.0 | 28.5 | 10.5 | 50/25 | 300.57 |
| 185 | 12 | A37-L 12 | 19.2 | 31.5 | 16.0 | 14.0 | 28.5 | 13.2 | 50/25 | 253.34 |
|
| 240/185,240 | 12 | A48-L 12 | 21.1 | 39.0 | 16.0 | 14.0 | 33.0 | 13.2 | 30/15 | 403.63 |
|
| 300/240,300 | 12 | A60-L 12 | 23.7 | 44.0 | 20.0 | 14.0 | 42.0 | 13.2 | 20/10 | 674.14 |
|
CODE : A-L Technical Features : A-L series lugs angled 90° are manufactured from electrolytic copper tube. The dimensions of the tube are designed to obtain the most efficient electrical conductivity and mechanical strength to resist vibration and pull out. Datasheet :

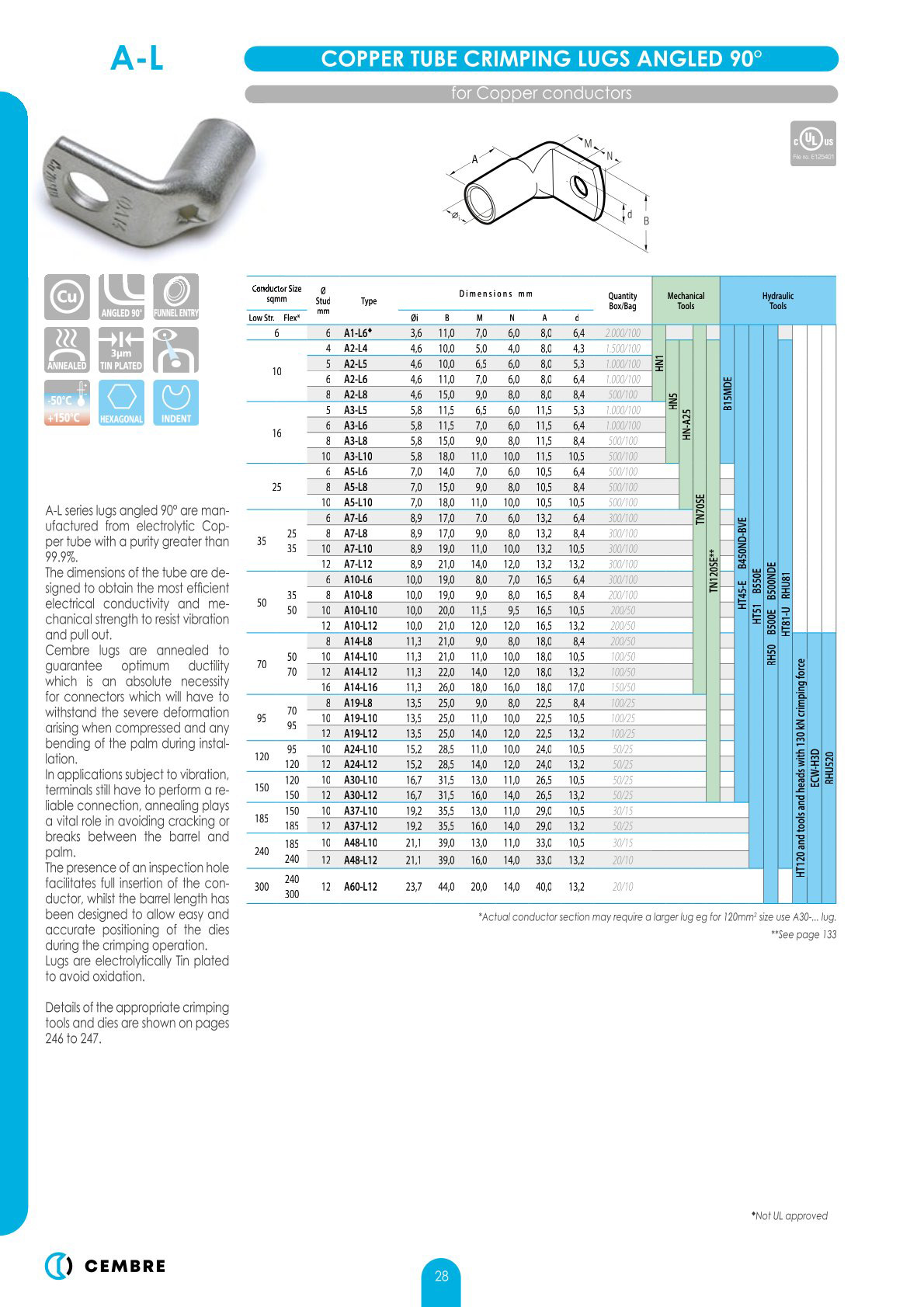

Cembre A-L
|
