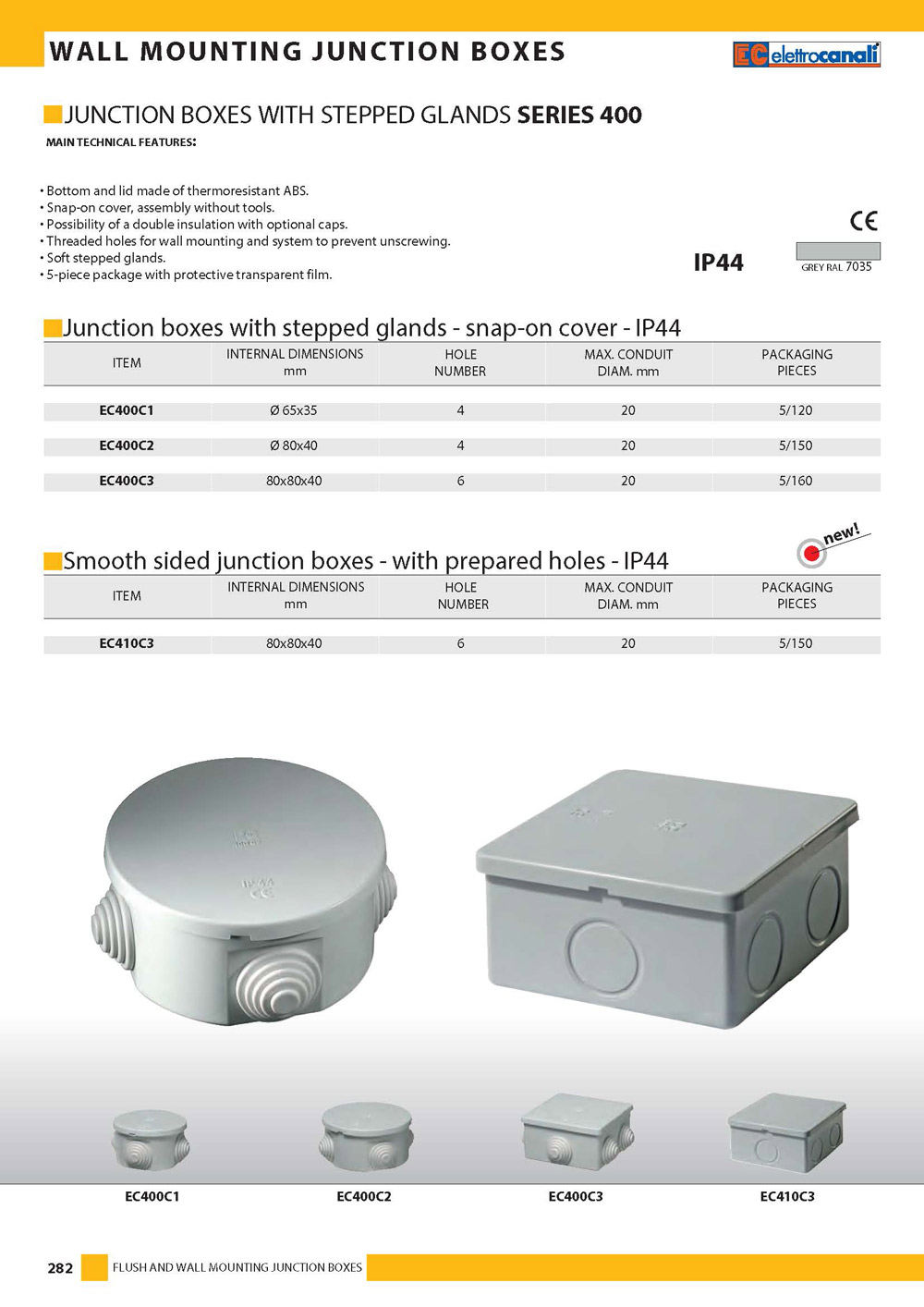

JUNCTION BOXES WITH STEPPED GLANDS SERIES 400

CAT NO.	INTERNAL DIMENSION mm.	HOLE NUMBER	MAX CONDUIT DIAM. mm.	QUANTITY BOX/BAG	PRICE/PCS.
EC400C1	65 x 35	4	20	5/120	70.00
EC400C2	80 x 40	4	20	5/150	80.00
EC400C3	80 x 80 x 40	6	20	5/160	95.00

SERIES 400 - IP44
MAIN TECHNICAL FEATURES :

• Bottom and lid made of thermoresistant ABS.
• Snap-on cover.
• Threaded holes for wall mounting and system to prevent unscrewing.
• Soft stepped glands.
• 5-piece package with protective transparent film.

Datasheet : SERIES 400 IP 44

JUNCTION BOXES WITH STEPPED GLANDS SERIES 400

CAT NO.	INTERNAL DIMENSION mm.	HOLE NUMBER	MAX CONDUIT DIAM. mm.	QUANTITY BOX/BAG	PRICE/PCS.
EC400C4	100 x 100 x 50	6	25	1/90	170.00
EC400C4R	120 x 80 x 50	6	25	1/90	205.00
EC400C5	150 x 110 x 70	10	25	1/45	300.00
EC400C6	190 x 140 x 70	10	32	1/25	560.00
EC400C7	240 x 190 x 70	12	32	1/14	840.00
EC400C8	300 x 220 x 120	12	32	1/6	1,700.00

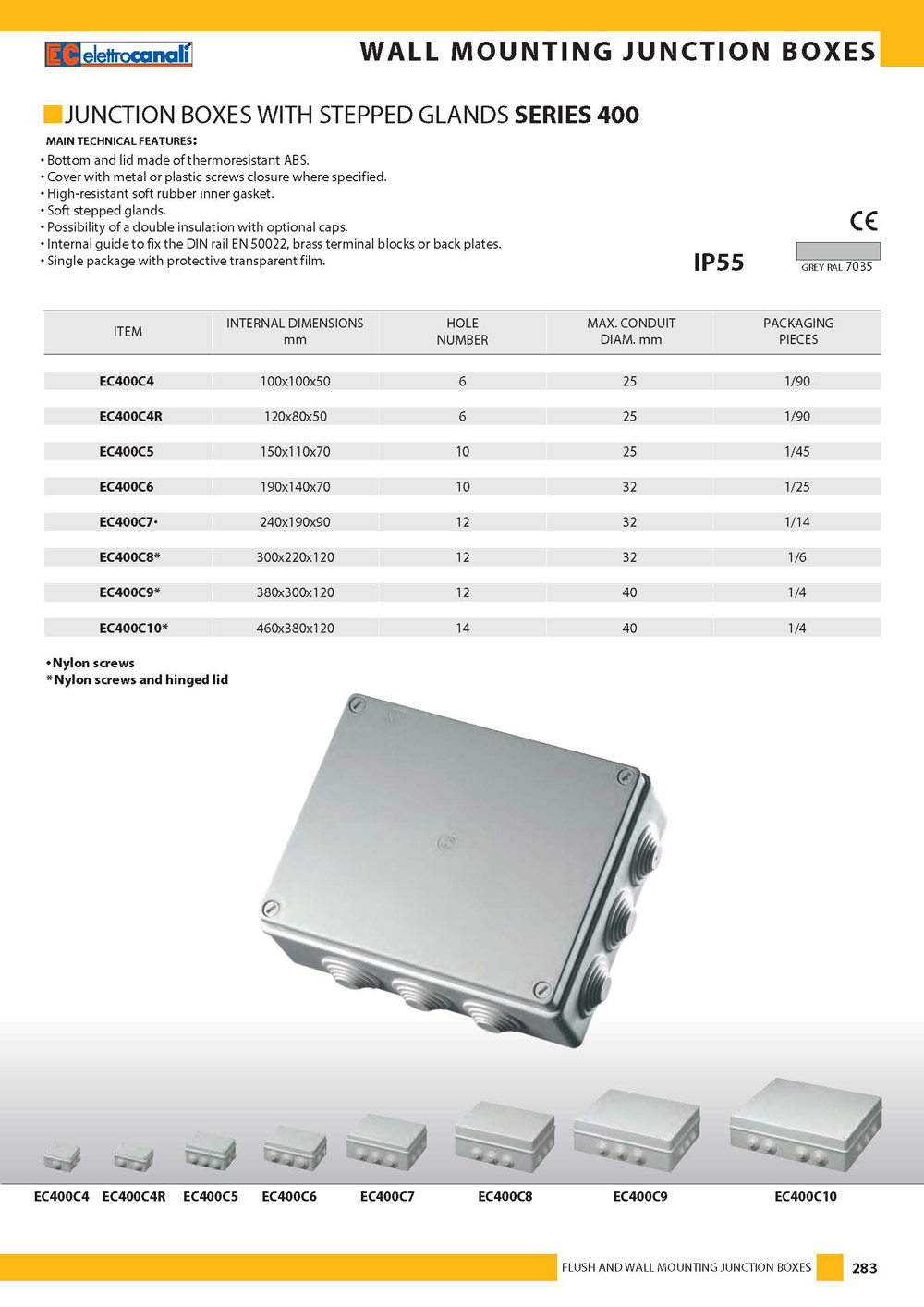

SERIES 400 - IP55
MAIN TECHNICAL FEATURES :

• Bottom and lid made of thermoresistant ABS.
• Snap-on cover .
• High-resistant soft rubber inner gasket.
• Soft stepped glands.
• Possibility of a double insulation with optional caps.
• Internal guide to fix the DIN rail EN 50022, brass terminal blocks or back plates.
• Single package with protective transparent film.

Datasheet : SERIES 400 IP 55

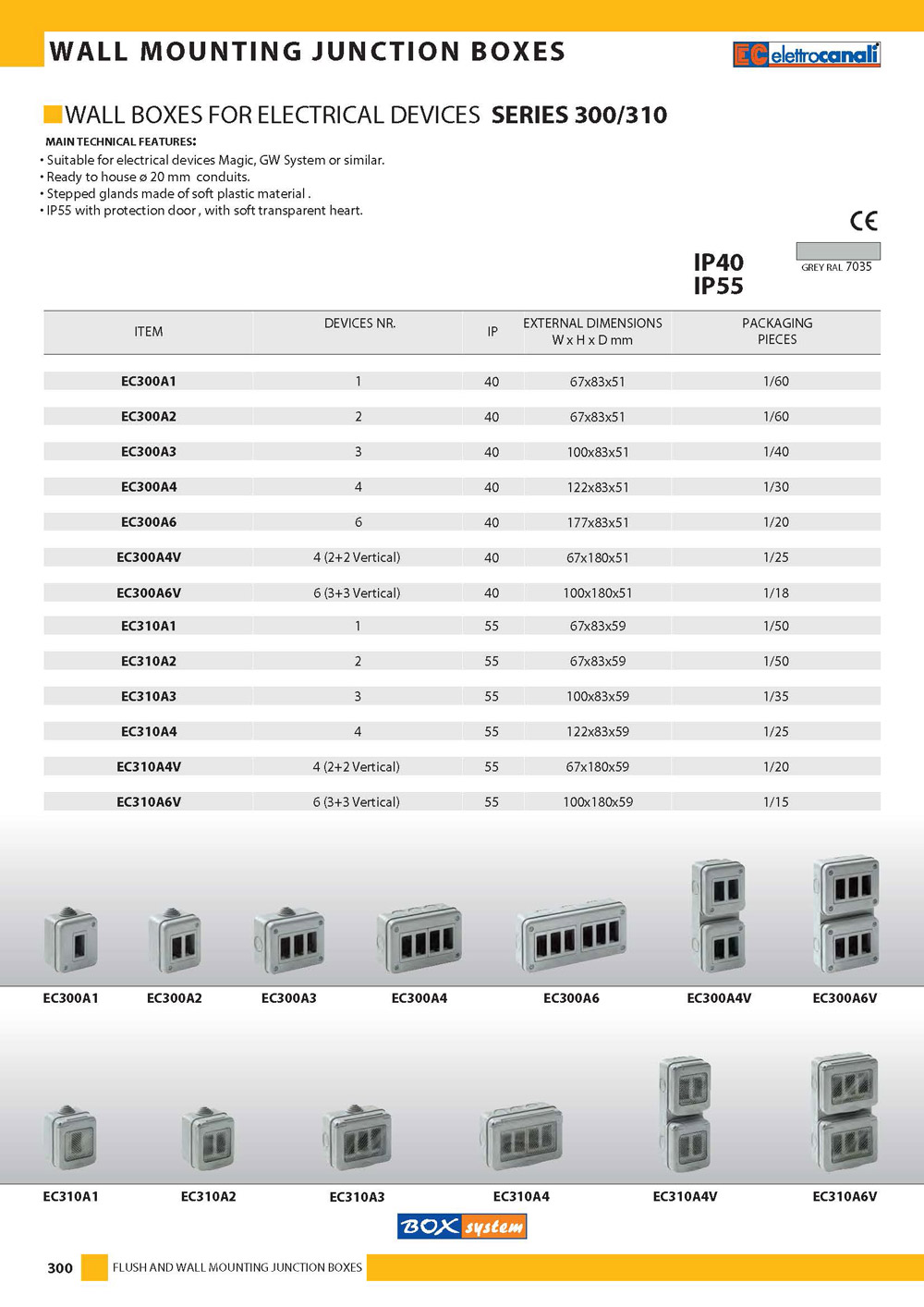

WALL BOX FOR ELECTRICAL DEVICES SERIES 310

CAT NO.	DIMENSIONS WxHxD mm.	DIVCES NUMBER	IP	QUANTITY BOX/BAG	PRICE/PCS.
EC310A1	67 x 83 x 59	1	55	1/50	210.00
EC310A2	67 x 83 x 59	2	55	1/50	210.00
EC310A3	100 x 83 x 59	3	55	1/35	330.00

SERIES 310 - IP55
MAIN TECHNICAL FEATURES :

• Suitable for electrical devices Magic, GW System or similar.
• Ready to house Ø20 mm conduits.
• Stepped glands made of soft plastic material .
• IP55 with protection door , with soft transparent heart.

Datasheet : SERIES 310 IP 55

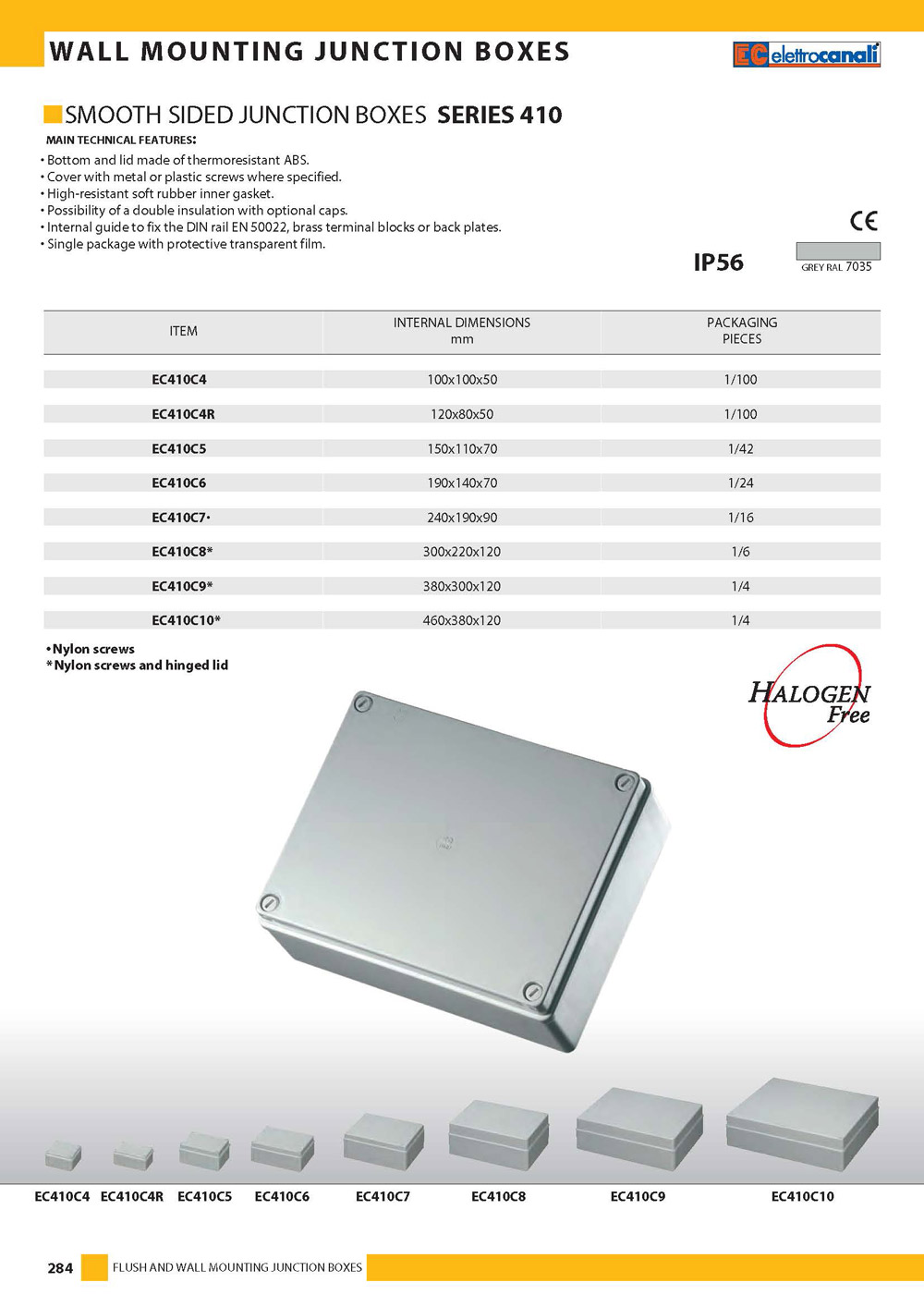

SMOOTH-SIDED JUNCTION BOXES SERIES 410

CAT NO.	INTERNAL DIMENSION mm.	QUANTITY BOX/BAG	PRICE/PCS.
EC410C4	100 x 100 x 50	1/100	165.00
EC410C4R	120 x 80 x 50	1/100	185.00
EC410C5	150 x 110 x 70	1/42	265.00
EC410C6	190 x 140 x 70	1/24	510.00
EC410C7	240 x 190 x 90	1/16	780.00
EC410C8	300 x 220 x 120	1/6	1,400.00
EC410C9	380 x 300 x 120	1/4	1,995.00

SERIES 410 - IP56
MAIN TECHNICAL FEATURES :

• Bottom and lid made of thermoresistant ABS.
• Screw cover.
• High-resistant soft rubber inner gasket.
• Possibility of a double insulation with optional caps.
• Internal guide to fix the DIN rail EN 50022, brass terminal blocks or back plates.
• Single package with protective transparent film.

Datasheet : SERIES 410 IP 56

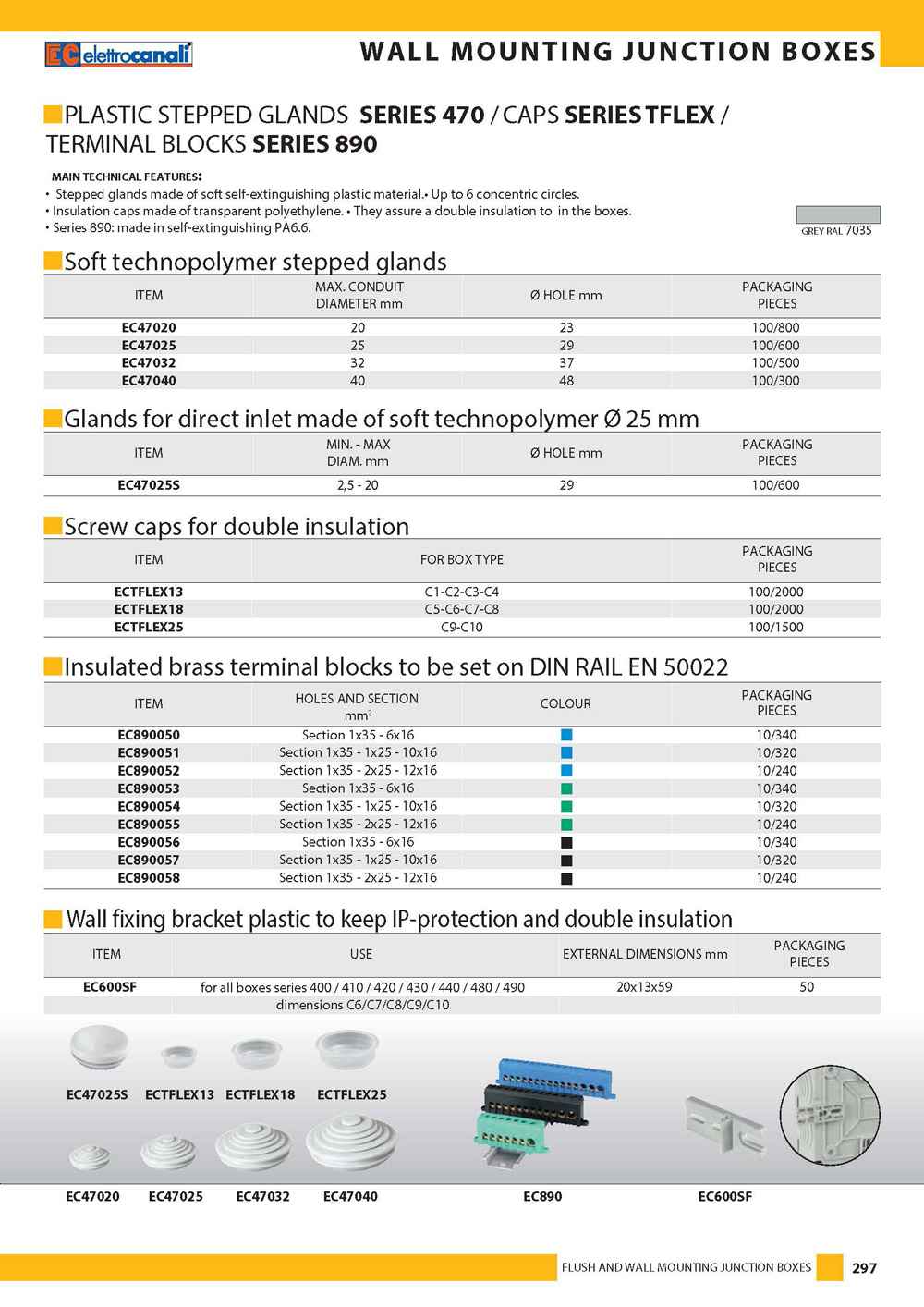

PLASTIC STEPPED GANDS SERIES 470

CAT NO.	MAX.CONDUIT DIMENSION mm.	HOLE mm.	QUANTITY BOX/BAG	PRICE/PCS.
EC47020	20	23	100/800	7.00
EC47025	25	29	100/600	9.00
EC47032	32	37	100/500	12.00

SERIES 470
MAIN TECHNICAL FEATURES :

• Stepped glands made of soft self-extinguishing plastic material.
• Up to 6 concentric circles.
• Insulation caps made of transparent polyethylene.
• They assure a double insulation to in the boxes, according to the Standard EN 60439

Datasheet : SERIES 470

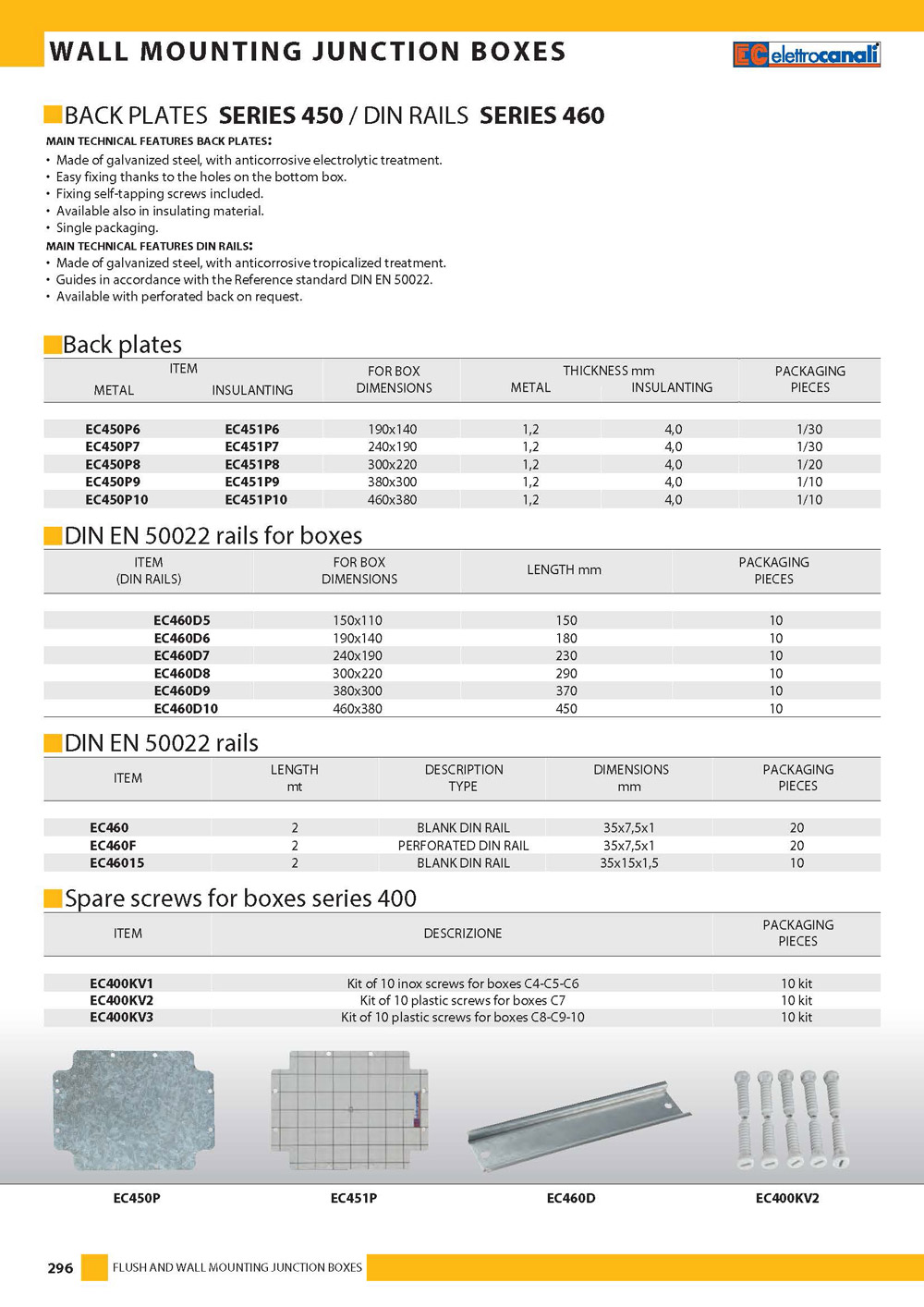

BACK PLATES SERIES 450

CAT NO.	INSULATING	BOX DIMENSIONS mm.	QUANTITY BOX/BAG	PRICE/PCS.
EC450P6	EC451P6	190 x 140	1/30	140.00
EC450P7	EC451P7	240 x 190	1/30	225.00
EC310A3	EC451P8	300 x 220	1/20	420.00
EC310A2	EC451P9	380 x 300	1/10	870.00

* ราคายังไม่รวมภาษีมูลค่าเพิ่ม และราคานี้อาจเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า

SERIES 450
BACK PLATES - MAIN TECHNICAL FEATURES :

• Made of galvanized steel, with anticorrosive electrolytic treatment.
• Easy fixing thanks to the holes on the bottom box.
• Fixing self-tapping screes included.
• Available also in insulating material.

DIN RAILS - MAIN TECHNICAL FEATURES :

• Made of galvanized steel, with anticorrosive tropicalized treatment.
• Guides in accordance with the Reference standard DIN EN 50022.
• Available with perforated back on request.

Data sheet : SERIES 450
