CEMBRE

COPPER TUBE CRIMPING LUGS
A-M : หางปลาหน้าแคบ
Cond.Size Flexible Sqmm Ø Stud mm. Ref. Dimensions mm. Quantity Box/Bag Price / pcs
Øi B M N L d
10 5 A2-M 5/9 4.6 9.0 6.5 6.0 26.0 5.3 1000/100
19.86
16 5 A3-M 5/9 5.8 9.0 6.5 6.0 29.0 5.3 1000/100
23.75
25 5 A5-M 5/9 7.0 9.0 6.5 6.0 31.5 5.3 500/100
90.75
35 6 A7B-M 6/11.5 8.9 11.5 8.0 7.0 40.5 6.4 400/100
40.35
50 6 A10B-M 6/11.5 10.0 11.5 8.0 7.0 36.5 6.4 200/50
50.75
50 10 A12-M 10/19 11.0 19.0 11.0 10.0 46.5 10.5 200/50
43.00
70 6 A14B-M 6/11.5 11.3 11.5 8.0 7.0 44.0 6.4 200/50
68.75
70 10 A17-M 10/19 13.0 19.0 11.0 10.0 51.0 10.5 200/50
62.00
95 8 A19B-M 8/15.5 13.5 15.5 9.0 8.0 52.5 8.4 100/25
105.00
  8 A24B-M 8/19 15.2 19.0 14.0 9.0 60.0 8.4 100/25
214.27
120 10 A24B-M 10/19 15.2 19.0 14.0 9.0 60.0 10.5 100/25
214.27
  8 A30B-M 8/19 16.7 19.0 18.0 9.0 70.0 8.4 100/25
264.00
150 10 A30B-M 10/19 16.7 19.0 18.0 9.0 70.0 10.5 50/25
264.00
185 10 A37B-M 10/24.5 19.2 24.5 18.0 9.0 77.0 10.5 50/25
290.80
  10 A48-M 10/31 21.1 31.0 13.0 9.0 80.0 10.5 30/15
382.63
  12 A48-M 12/31 21.1 31.0 16.0 12.0 86.0 13.2 30/15
382.63
240 16 A48-M 16/31 21.1 31.0 19.0 17.0 94.0 17.0 30/15
413.24
300 10 A60B-M 10/31 23.7 31.0 16.0 12.0 95.0 10.5 20/10
581.59
  12 A60B-M 12/31 23.7 31.0 19.0 12.0 95.0 13.2 20/10
581.59

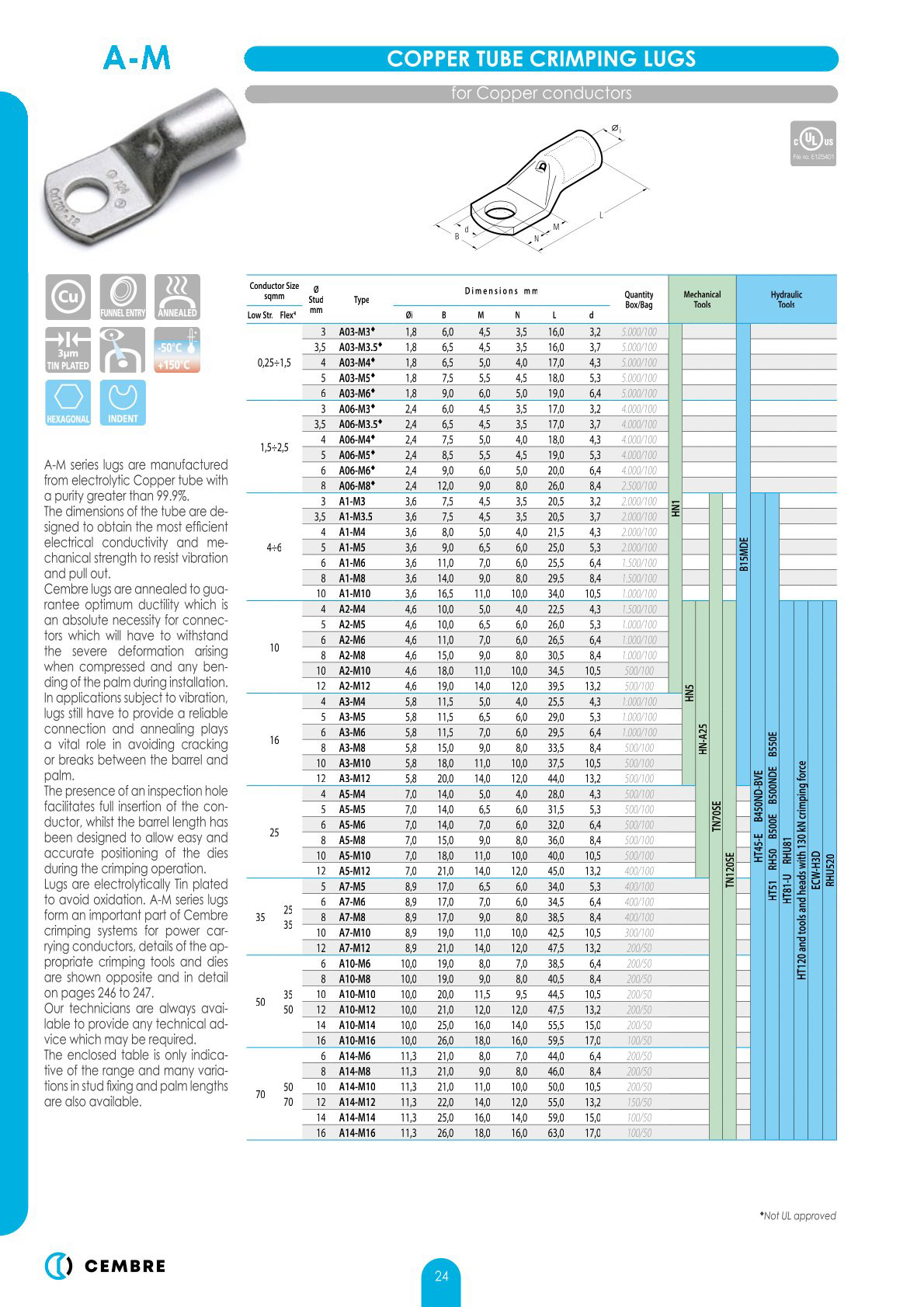

A-M : หางปลาชนิดหนา
Cond.Size Sqmm Low std./ flexible Ø Stud mm. Ref. Dimensions mm. Quantity Box/Bag Price / pcs
Øi B M N L d
0.25-1.5 3 A03-M3 1.8 6.0 4.5 3.5 16.0 3.2 5000/100
7.53
4 A03-M4 1.8 6.5 5.0 4.0 17.0 4.3 5000/100
7.53
5 A03-M5 1.8 7.5 5.5 4.5 18.0 5.3 5000/100
7.53
1.5-2.5 3 A06-M3 2.4 6.0 4.5 3.5 17.0 3.2 4000/100
7.82
4 A06-M4 2.4 7.5 5.0 4.0 18.0 4.3 4000/100
7.82
5 A06-M5 2.4 8.5 5.5 4.5 19.0 5.3 4000/100
7.82
6 A06-M6 2.4 9.0 6.0 5.0 20.0 6.4 4000/100
7.82
8 A06-M8 2.4 12.0 9.0 8.0 26.0 8.4 2500/100
11.29
4-6 3.5 A1-M3.5 3.6 7.5 4.5 3.5 20.5 3.7 2000/100
14.73
4 A1-M4 3.6 8.0 5.0 4.0 21.5 4.3 2000/100
13.17
5 A1-M5 3.6 9.0 6.5 6.0 25.0 5.3 2000/100
13.17
6 A1-M6 3.6 11.0 7.0 6.0 25.5 6.4 2000/100
13.17
8 A1-M48 3.6 14.0 9.0 9.0 29.5 8.4 1500/100
14.50
10 A1-M10 3.6 16.5 11.0 10.0 33.5 10.5 1000/100
18.30
10 6 A2-M6 4.6 11.0 7.0 6.0 26.5 6.4 1500/100
10.63
8 A2-M8 4.6 15.0 9.0 8.0 30.5 8.4 1000/100
11.71
10 A2-M10 4.6 18.0 11.0 10.0 34.5 10.5 1000/100
13.50
12 A2-M12 4.6 19.0 14.0 12.0 42.5 13.2 500/100
17.12
16 6 A3-M6 5.8 11.5 7.0 6.0 29.5 6.4 1000/100
12.98
8 A3-M8 5.8 15.0 9.0 8.0 33.5 8.4 500/100
13.94
10 A3-M10 5.8 18.0 11.0 10.0 37.5 10.5 500/100
15.29
12 A3-M12 5.8 20.0 14.0 12.0 42.5 13.2 500/100
18.48
25 6 A5-M6 7.0 14.0 7.0 6.0 32.0 6.4 30/15
17.59
8 A5-M8 7.0 15.0 9.0 8.0 36.0 8.4 30/15
18.00
10 A5-M10 7.0 18.0 11.0 10.0 40.0 10.5 30/15
20.64
12 A5-M12 7.0 21.0 14.0 12.0 45.0 13.2 30/15
22.81
35 25 6 A7-M6 8.9 17.0 7.0 6.0 34.5 6.4 500/100
27.87
8 A7-M8 8.9 17.0 9.0 8.0 38.5 8.4 500/100
29.63
35 10 A7-M10 8.9 19.0 11.0 10.0 42.5 10.5 700/100
32.14
12 A7-M12 8.9 21.0 14.0 12.0 47.5 13.2 300/50
34.50
50 35 8 A10-M6 10.0 19.0 9.0 8.0 40.5 8.4 200/50
39.51
10 A10-M8 10.0 20.0 15.5 9.5 44.5 10.5 200/50
41.75
50 12 A10-M10 10.0 21.0 12.0 12.0 47.5 13.2 200/50
44.19
16 A10-M16 10.0 26.0 18.0 16.0 59.5 17.0 200/50
49.73
70 50 6 A14-M6 11.3 21.0 8.0 7.0 44.0 6.4 200/50
54.06
8 A14-M8 11.3 21.0 9.0 8.0 46.0 8.4 200/50
54.06
10 A14-M10 11.3 21.0 11.0 10.0 50.0 10.5 200/50
57.23
70 12 A14-M12 11.3 22.0 14.0 12.0 55.0 13.2 150/50
59.61
16 A14-M16 11.3 26.0 18.0 16.0 63.0 17.0 100/50
65.22

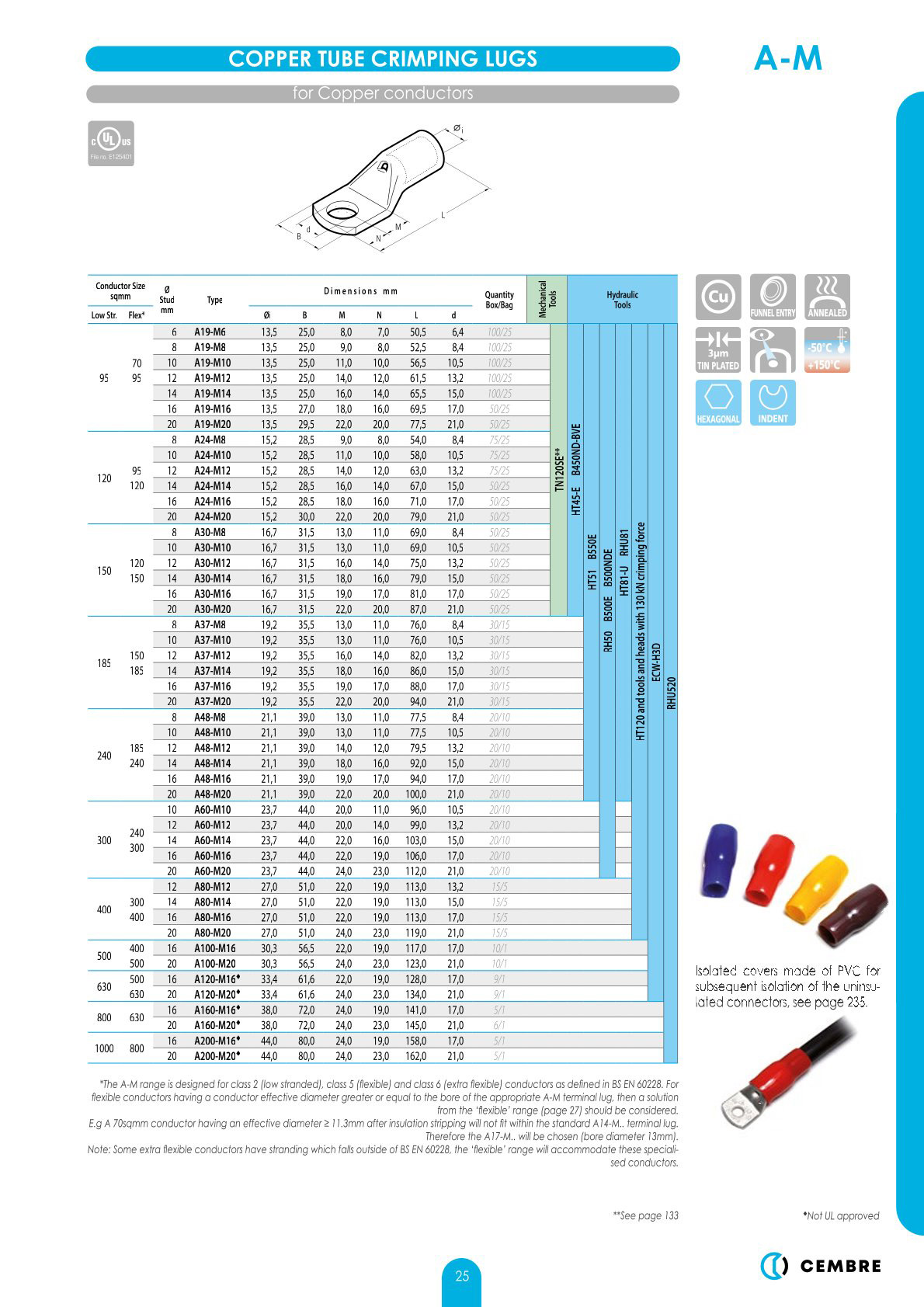

Cond.Size Sqmm Low std./ flexible Ø Stud mm. Ref. Dimensions mm. Quantity Box/Bag Price / pcs
Øi B M N L d
95 70 8 A19-M8 13.5 25.0 9.0 8.0 52.5 8.4 100/25
83.48
10 A19-M10 13.5 25.0 11.0 10.0 56.5 10.5 100/25
87.21
95 12 A19-M12 13.5 25.0 14.0 12.0 61.5 13.2 100/25
93.03
16 A19-M16 13.5 27.0 18.0 16.0 69.5 17.0 100/25
102.97
120 95 8 A24-M8 15.2 28.5 9.0 8.0 54.0 8.4 100/25
106.49
10 A24-M10 15.2 28.5 11.0 10.0 58.0 10.5 100/25
110.08
12 A24-M12 15.2 28.5 14.0 14.0 63.0 13.2 100/25
116.90
120 14 A24-M14 15.2 28.5 16.0 14.0 67.0 15.0 50/25
123.26
16 A24-M16 15.2 28.5 18.0 16.0 71.0 17.0 50/25
128.80
150 120 10 A30-M10 16.7 31.5 13.0 11.0 69.0 10.5 50/25
162.47
12 A30-M12 16.7 31.5 16.0 14.0 75.0 13.2 50/25
163.72
150 14 A30-M14 16.7 31.5 18.0 16.0 79.0 15.0 50/25
171.51
16 A30-M16 16.7 31.5 19.0 17.0 81.0 17.0 50/25
173.00
20 A30-M10 16.7 31.5 22.0 20.0 87.0 21.0 50/25
195.79
185 150 12 A37-M12 19.2 35.5 16.0 14.0 82.0 13.2 40/20
220.22
14 A37-M14 19.2 35.5 18.0 16.0 86.0 15.0 30/15
241.36
185 16 A37-M16 19.2 35.5 19.0 17.0 88.0 21.0 30/15
248.71
240 185 10 A48-M10 21.1 39.0 13.0 11.0 77.5 10.5 30/15
290.00
12 A48-M12 21.1 39.0 14.0 12.0 79.5 13.2 30/15
309.79
14 A48-M14 21.1 39.0 18.0 16.0 92.0 15.0 30/15
318.18
240 16 A48-M16 21.1 39.0 19.0 17.0 94.0 17.0 30/15
325.82
20 A48-M20 21.1 39.0 22.0 20.0 100.0 21.0 30/15
363.50
300 240 14 A60-M14 23.7 44.0 22.0 16.0 113.0 15.0 20/10
470.63
16 A60-M16 23.7 44.0 22.0 19.0 106.0 17.0 20/10
470.63
300 20 A60-M20 23.7 44.0 24.0 23.0 112.0 21.0 20/10
524.20
400 300 16 A80-M16 27.0 51.0 22.0 19.0 113.0 17.0 20/5
694.26
400 20 A80-M20 27.0 51.0 24.0 23.0 119.0 21.0 20/5
780.85
500 400 16 A100-M16 30.3 56.5 22.0 19.0 117.0 17.0 15/1
933.61
500 20 A100-M20 30.3 56.5 24.0 23.0 123.0 21.0 15/1
994.83
630 500 16 A120-M16 33.4 61.6 22.0 19.0 128.0 17.0 12/1
1,109.62
630 20 A120-M20 33.4 61.6 24.0 23.0 134.0 21.0 10/1
1,125.82
800 630 16 A160-M16 38.0 72.0 24.0 19.0 141.0 17.0 6/1
2,261.33
20 A160-M20 38.0 72.0 24.0 23.0 145.0 21.0 6/1
2.268.98
1000 800 16 A200-M16 44.0 80.0 24.0 19.0 158.0 17.0 6/1
2,670.74
20 A200-M20 44.0 80.0 24.0 23.0 162.0 21.0 6/1
2,693.70
* ราคายังไม่รวมภาษีมูลค่าเพิ่ม และราคานี้อาจเปลี่ยนแปลงได้โดยไม่แจ้งให้ทราบล่วงหน้า

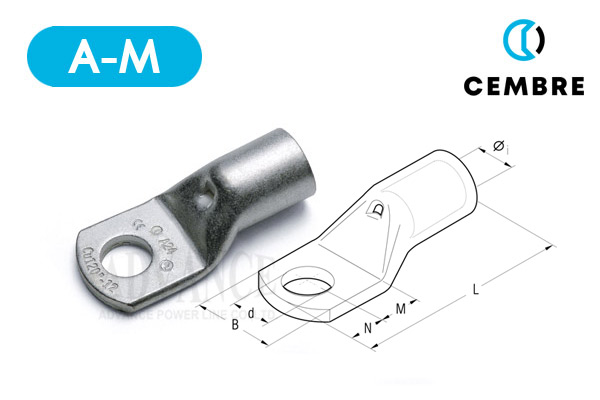

CODE : A-M
Technical Features :
   A-M series lugs are manufactured from electrolytic copper tube Cu-OF CW008A conform to UNI EN 13600.
   The dimensions of the tube are designed to obtain the most efficient electrical conductivity and mechanical strength to resist vibration and pull out.
   Cembre lugs are annealed to guarantee optimum ductility which is an absolute necessity for connectors which will have to withstand the severe deformation arising when compressed and any bending of the palm during installation.
   In applications subject to vibration, lugs still have to provide a reliable connection and annealing plays a vital role in avoiding cracking or breaks between the barrel and palm.
   The presence of an inspection hole facilitates full insertion of the conductor, whilst the barrel length has been designed to allow easy and accurate positioning of the dies during the crimping operation. Lugs are electrolytically tinplated to avoid oxidation.

   A-M series lugs form an important part of Cembre crimping systems for power carrying conductors. Our technicians are always available to provide any technical advice which may be required.

   The enclosed table is only indicative of the range and many variations in stud fixing and palm lengths are also available.
Each connector is marked as follows:
   : Cembre trade mark and reference number.
   : Nature and size of conductor (mm2).
   : Ø stud (mm).
