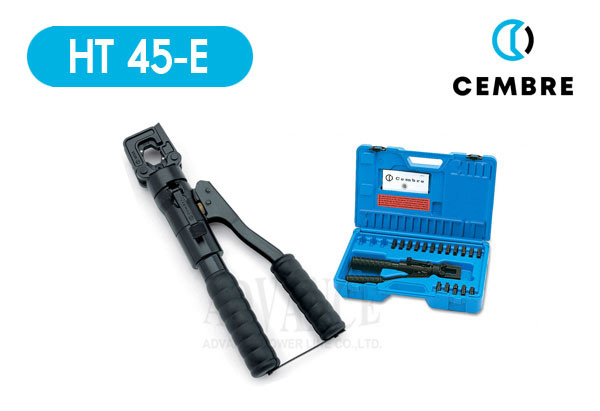

HT 45-E : HYDRAULIC CRIMPING TOOL |
MAIN APPLICATIONS - max sections mm2 |
PRICE | |
---|---|---|
L.V. lugs and splices |
150 | 54,500.- |
“C” sleeve connectors |
35 | |
H.V. lugs and splices |
70 |
TECHNICAL FEATURES |
STORAGE |
||
---|---|---|---|
Crimping force kN |
50 | Type |
VAL-P1* |
Dimensions mm |
Dimensions mm L x W x H |
445 x 290 x 95 | |
- Length |
346 | Weight kg |
1,2 |
- Width |
130 | Supplied with the tool |
* |
- Weight kg |
2.0 | *Suitable for storage of the tool and 20 sets of dies |

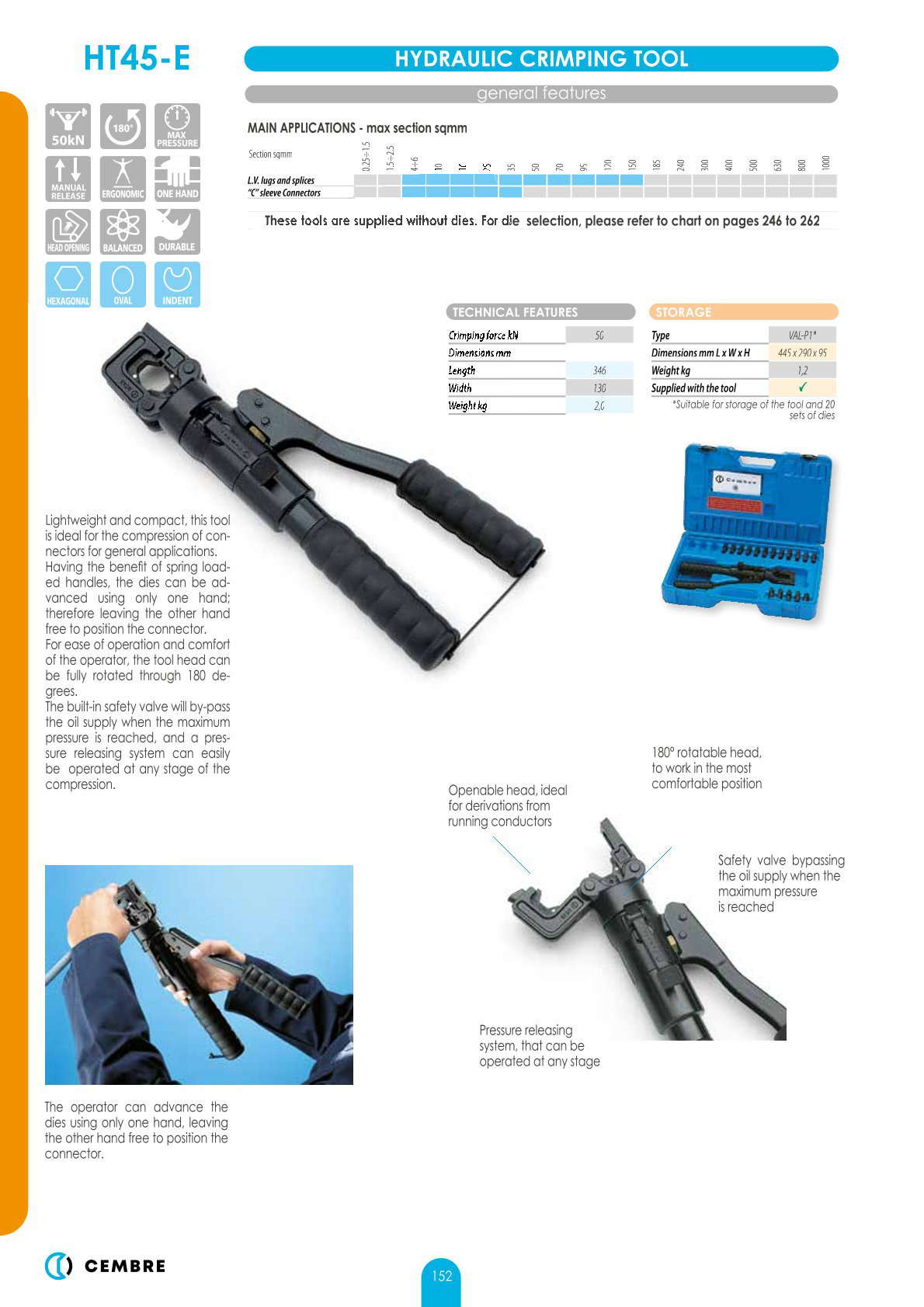

CODE : HT 45-E Technical Features : Lightweight and compact, this tool is ideal for the compression of connectors on over head lines and other general applications. Having the benefit of spring loaded handles, the dies can be advanced using only one hand; therefore leaving the other hand free to position the connector. For ease of operation and comfort of the operator, the tool head can be fully rotated through 180 degrees. The built-in safety valve will by-pass the oil supply when the maximum pressure is reached, and a pressure releasing system can easily be operated at any stage of the compression Datasheet : Cembre HT 45-E |
