| KE : หางปลาแบบหุ้มปลายสาย |
| Conductor Size Sqmm | Ref. | Dimensions mm. | Quantity Box/Bag | Price / pcs | ||
|---|---|---|---|---|---|---|

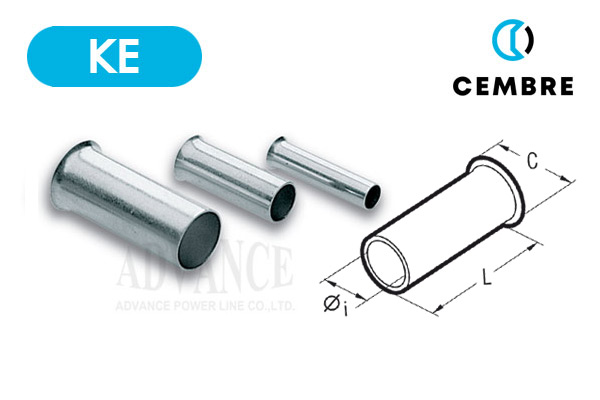

| Ø | L | C | ||||
| 1.5 | KE 1510 ST | 1.8 | 10.0 | 2.8 | 25000/500 | 1.50 |
| 2.5 | KE 2510 ST | 2.3 | 10.0 | 3.4 | 20000/500 | 1.65 |

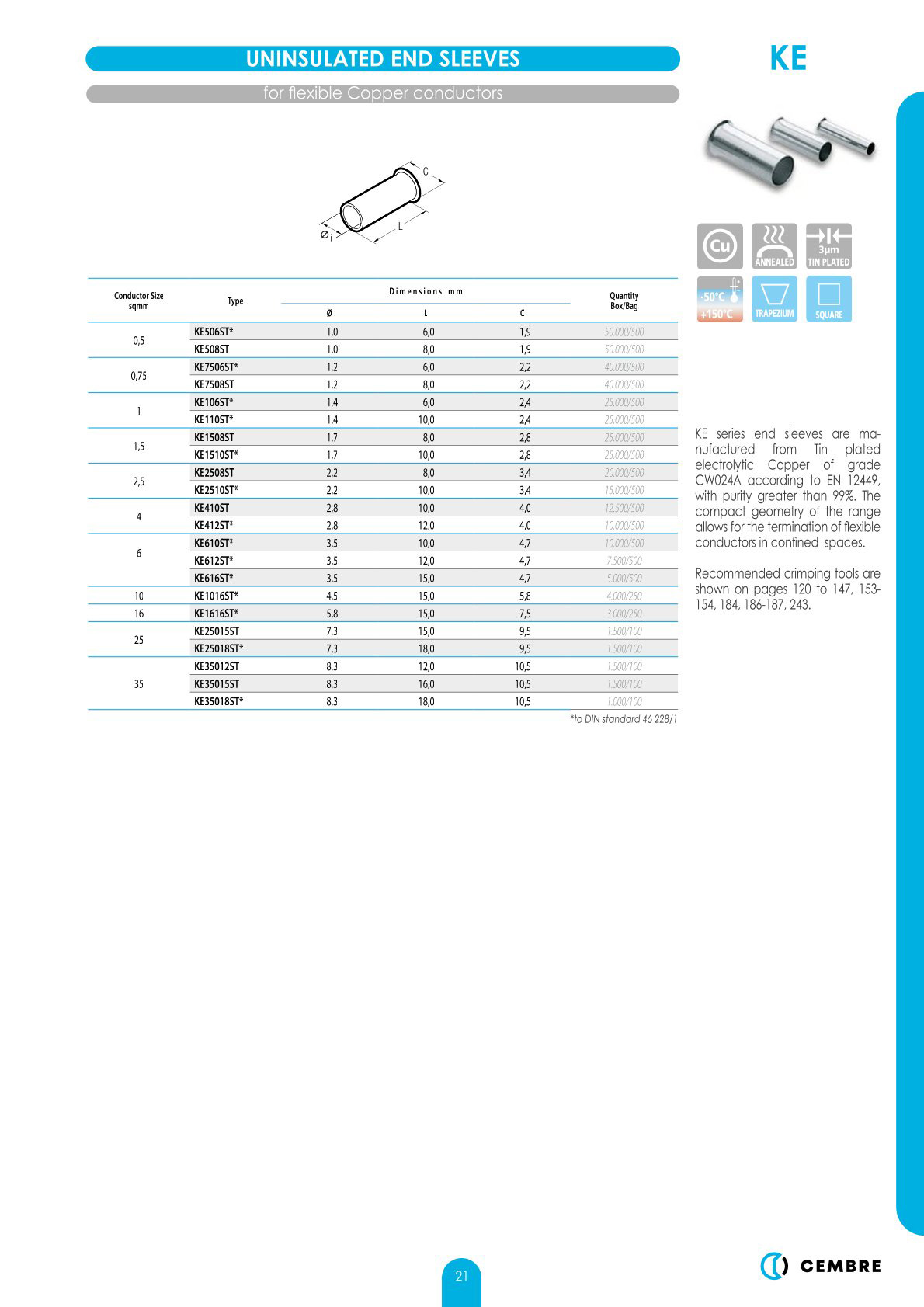

CODE : KE Technical Features : KE series end sleeves are manufactured from electrolytic copper type CW024A according to EN 12449 with purity greater than 99% and electrolytically tinned; thanks to their small size, they can be used for fixing flexible conductors on terminals where the available space is limited. Datasheet :
Cembre KE
|
