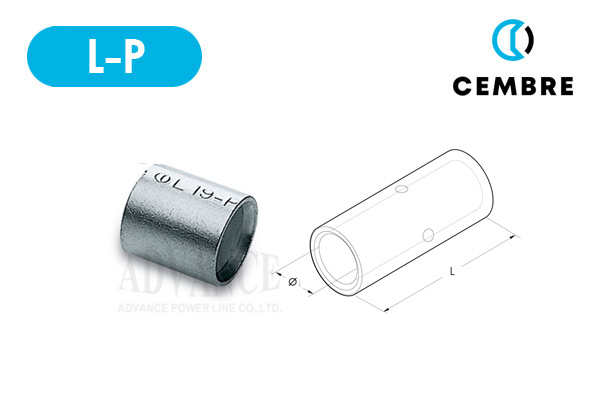

| L-P : คอนเนคเตอร์เปลือยสำหรับต่อสายแบบทาบสาย |
| Cond.Size Sqmm | Ref. | Dimensions mm. | Quantity Box/Bag | Price / pcs | ||
|---|---|---|---|---|---|---|
| Run | Tap | Ø | L | |||
| 0.25-1.5 | 0.25-1.5 | L03-P | 1.8 | 6.0 | 10000/100 | 3.14 |
| 1.5-2.5 | 1.5-2.5 | L 06-P | 2.4 | 6.0 | 5000/100 | 3.14 |
| 4-6 | 4-6 | L 1-P | 3.6 | 9.0 | 3000/100 | 4.25 |
| 10 | 10 | L 2-P | 4.6 | 10.5 | 3000/100 | 7.00 |
| 16 | 16 | L 3-P | 5.8 | 11.5 | 2000/100 | 8.23 |
| 25 | 25 | L 5-P | 7.0 | 13.0 | 1500/100 | 11.86 |
| 35 | 25-35 | L 7-P | 8.9 | 14.0 | 500/100 | 16.00 |
| 50 | 35-50 | L 10-P | 10.0 | 16.0 | 500/100 | 20.00 |
| 70 | 50-70 | L 14-P | 11.3 | 18.0 | 500/100 | 27.00 |
| 95 | 70-95 | L 19-P | 13.5 | 19.0 | 300/50 | 42.00 |
| 120 | 95-120 | L 44-P | 15.2 | 22.0 | 200/50 | 56.00 |
| 150 | 120-150 | L 30-P | 16.7 | 26.5 | 100/50 | 96.00 |
| 185 | 150-185 | L 37-P | 19.2 | 26.5 | 100/50 | 120.00 |
| 240 | 185-240 | L 48-P | 21.1 | 34.0 | 60/15 | 190.00 |

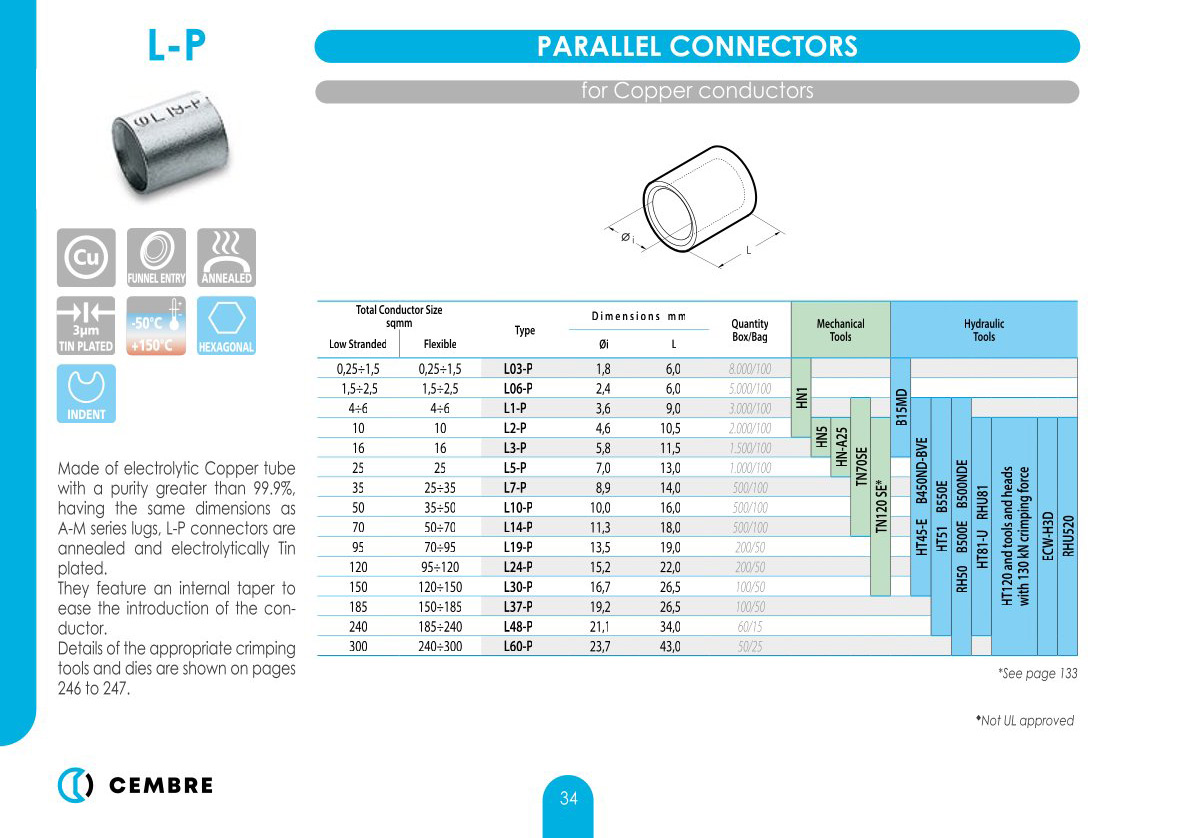

CODE : L-P Technical Features : Made of electrolytic copper tube Cu-ETP CWOO4A conform to UNI EN 13600, having the same dimensions as A-M series lugs, L-P connectors are annealed and electrolytically tin plated (minimum thickness of 3μm). Datasheet : Cembre L-P
|
