CEMBRE PKC

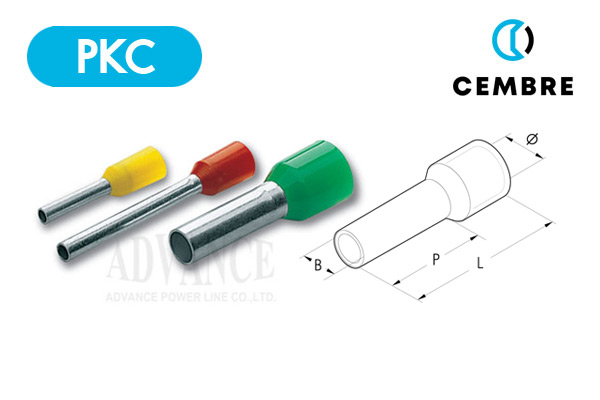

PKC : หางปลาหุ้ม แบบหุ้มปลายสาย

Conductor Size Sqmm	Ref.	Dimensions mm.				Inslation Colour	Quantity Box/Bag	Price / pcs
Conductor Size Sqmm	Ref.	Ø	B	P	L	Inslation Colour	Quantity Box/Bag	Price / pcs
0.1 - 0.3	PKC 306	1.9	1.1	6.0	10.0	LIGHT BLUE	20000/500	1.92
0.1 - 0.3	PKC 308	1.9	1.1	8.0	12.0	LIGHT BLUE	20000/500	2.15
0.3 - 0.5	PKC 508	2.6	1.4	8.0	14.0	ORANGE	10000/500	0.96
0.3 - 0.5	PKC 510	2.6	1.4	10.0	16.0	ORANGE	10000/500	2.00
0.75	PKC 7508	2.8	1.6	8.0	14.0	WHITE	10000/500	0.96
0.75	PKC 7512	2.8	1.6	12.0	18.0	WHITE	10000/500	2.50
1	PKC 108	3.0	1.8	8.0	14.0	YELLOW	10000/500	0.96
1	PKC 112	3.0	1.8	12.0	18.0	YELLOW	10000/500	2.50
1.5	PKC 1508	3.5	2.1	8.0	14.0	RED	5000/500	0.96
	PKC 1510	3.5	2.1	10.0	16.0		7500/500	1.90
	PKC 1518	3.5	2.1	18.0	24.0		5000/500	2.90
2.5	PKC 2508	4.2	2.6	8.0	14.0	BLUE	5000/500	1.12
	PKC 2512	4.2	2.6	12.0	18.0		5000/500	2.50
	PKC 2518	4.2	2.6	18.0	24.0		5000/500	3.39
4	PKC 410	4.8	3.3	10.0	18.0	GREY	3000/200	1.60
	PKC 412	4.8	3.3	12.0	20.0		3000/200	2.62
	PKC 418	4.8	3.3	18.0	26.0		3000/200	3.61
6	PKC 612	6.3	4.0	12.0	20.0	BLACK	1500/100	2.50
6	PKC 618	6.3	4.0	18.0	26.0	BLACK	2000/100	4.76
10	PKC 1012	7.6	5.0	12.0	22.0	IVORY	1000/100	3.50
10	PKC 1018	7.6	5.0	18.0	28.0	IVORY	1500/100	5.50
16	PKC 1612	8.8	6.2	12.0	23.0	GREEN	1000/100	3.94
16	PKC 1618	8.8	6.2	18.0	29.0	GREEN	1000/100	7.00
25	PKC 25016	11.2	7.9	16.0	30.0	BROWN	500/50	11.75
25	PKC 25022	11.2	7.9	22.0	36.0	BROWN	500/50	19.13
35	PKC 35016	12.7	8.9	16.0	30.0	BEIGE	400/50	15.00
35	PKC 35025	12.7	8.9	25.0	39.0	BEIGE	400/50	23.78
50	PKC 50020	15.0	11.0	20.0	36.0	OLIVE	300/50	23.23
50	PKC 50025	15.0	11.0	25.0	41.0	OLIVE	250/50	28.42
70	PKC 70022	16.0	14.3	22.0	38.0	YELLOW	100/25	52.47
95	PKC 95025	18.0	15.7	25.0	44.0	RED	100/25	77.00
120	PKC 120027	21.0	17.5	27.0	48.0	BLUE	100/25	109.87

* ราคายังไม่รวมภาษีมูลค่าเพิ่ม และราคานี้อาจเปลี่ยนแปลงได้โดยไม่แจ้งให้ทราบล่วงหน้า

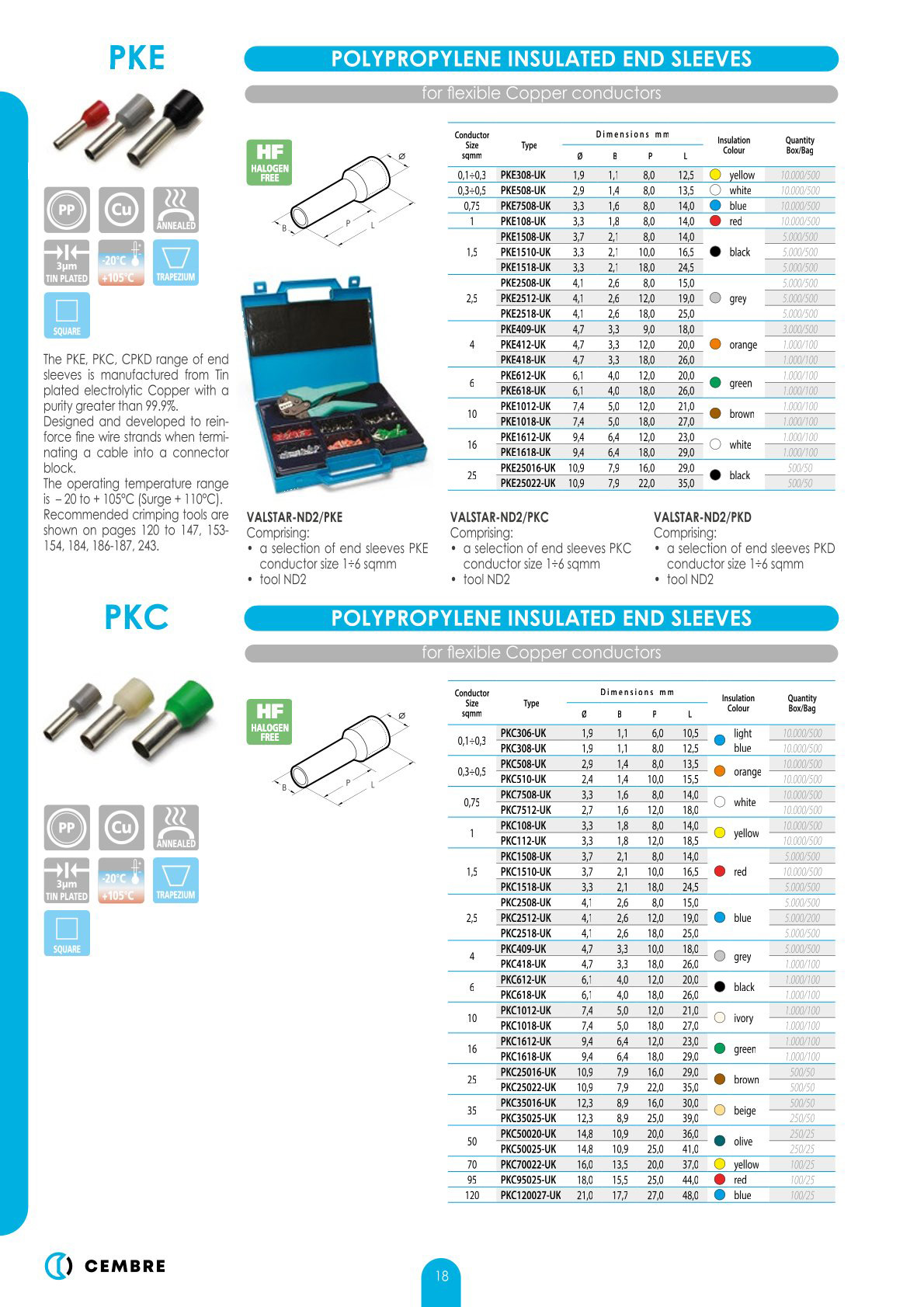

CODE : PKC
Technical Features :

   The PKC range of end sleeves is manufactured from Tin plated electrolytic Copper with a purity greater than 99,9%.
   Designed and developed to reinforce the fine wire strands, when terminating a cable into a connector block.

The connectors are manufactured from Copper Cu DHP UNI 5649/1988 (corresponding to: SF-Cu DIN 1787/1973 Cu/b1 NF A 51-050)
Tin plated with a minimum thickness of 3μm.

Main characteristics of the PA6 sleeves:
   - DIELECTRIC STRENGTH (KV/mm) : >16,5
   - VOLUME RESISTIVITY (Ω • cm) : >1013
   - MAX OPERATING TEMPERATURE (°C) : 115-130
   - FLAMMABILITY (UL94) : V2
   - DENSITY (g/cm3) : 1,14
   - WATER ABSORPTION (%) : 1,5
   - BREAKING LOAD (N/mm2) : 77
The connectors can be stored at a minimum temperature not below - 40°C.

Datasheet : Cembre PKC
