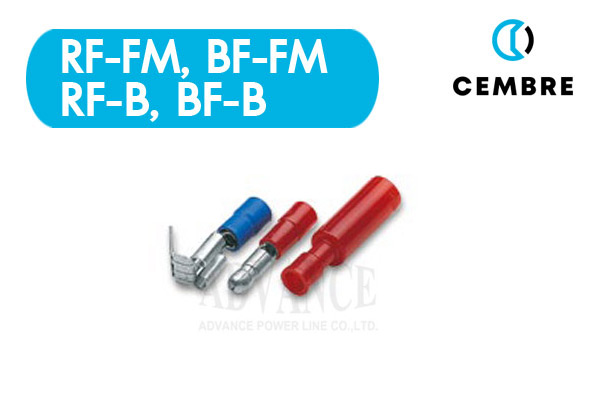

The PC insulated disconnect terminals has been designed, to meet the increasing demands for improved safety and reliability of electrical connectors.
   The polycarbonate insulation, is a halogen free, self extinguishing thermoplastic material class V0 (UL 94). The unique funnel shaped entry of the insulation sleeve, guarantees total insertion of the conductor strands into the terminal barrel, creating a secure and reliable, electrical and mechanical connection.

Technical details:
The connectors are manufactured from brass P-Cu Zn 30 UNI 4895/1962
(corresponding to: Cu Zn 30 DIN 17660/1974 ; Cu Zn 30 NF A51-101/1977) according to IEC 61210 norms and are tin plated with a minimum thickness of 3m.

The reinforcement tube is made of copper SF Cu DIN 1787/1973, F25

Main characteristics of the PC (PC10500AC) sleeves:
   - DIELECTRIC STRENGTH (KV/mm) : >30
   - VOLUME RESISTIVITY (Ω/cm) : >1016
   - MAX OPERATING TEMPERATURE (°C) : 115÷130
   - FLAMMABILITY (UL-94) : V0
   - DENSITY (g/cm3) : 1,2
   - WATER ABSORPTION (%) : 0,15
   - BREAKING LOAD (N/mm2) : >65
