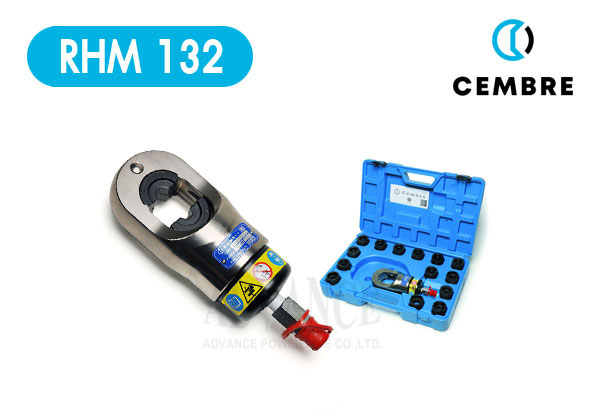

| RHM 132 : HYDRAULIC PRESSHEAD |
MAIN APPLICATIONS - max sections mm2 |
PRICE | |
|---|---|---|
L.V. lugs |
400 | 55,000.- |
Insulated terminals |
240 | |
H.V. lugs
|
400 | |
TECHNICAL FEATURES |
STORAGE
|
||
|---|---|---|---|
Crimping force kN |
130 | Type |
VAL-P26* |
Max operating pressure bar |
700 | Dimensions mm L x W x H |
445 x 290 x 115 |
Dimensions mm |
Weight kg |
1.2 | |
- Length |
216 | Supplied with the tool |
- |
- Width |
80 | Purchase separately
|
* |
- Weight kg |
3.1 | *Suitable for storage of the tool and 20 sets of dies |
|

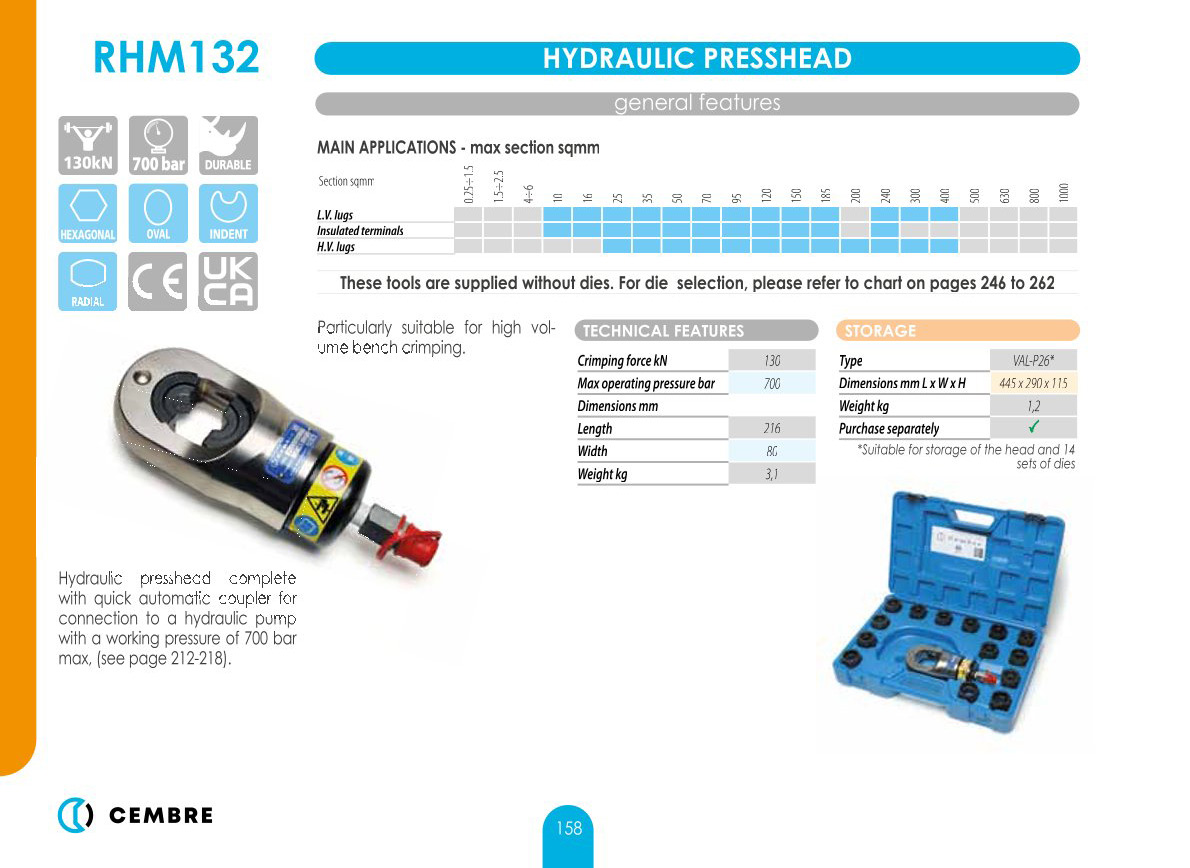

CODE : RHM 132 Technical Features : Hydraulic presshead complete with quick automatic coupler for connection to a hydraulic pump with a working pressure of 700 bar max, (see page 212-218). Datasheet : Cembre RHM 132 |
