| TC096 : HYDRAULIC CUTTING HEAD |
MAIN APPLICATIONS |
PRICE |
|---|---|
Specifically designed to cut Copper and Aluminium cable having Ø max 95 mm |
Call |
TECHNICAL FEATURES |
STORAGE
|
||
|---|---|---|---|
Max cutting Ø mm |
95 | Type |
VAL-096 |
Max operating pressure bar |
700 | Dimensions mm L x W x H |
450 x 265 x 145 |
Dimensions mm |
Weight kg |
6.8 | |
- Length |
397 | Supplied with the tool |
* |
- Width |
249 | *Suitable for storage of the tool and 20 sets of dies
|
|
- Weight kg |
7.9 | ||

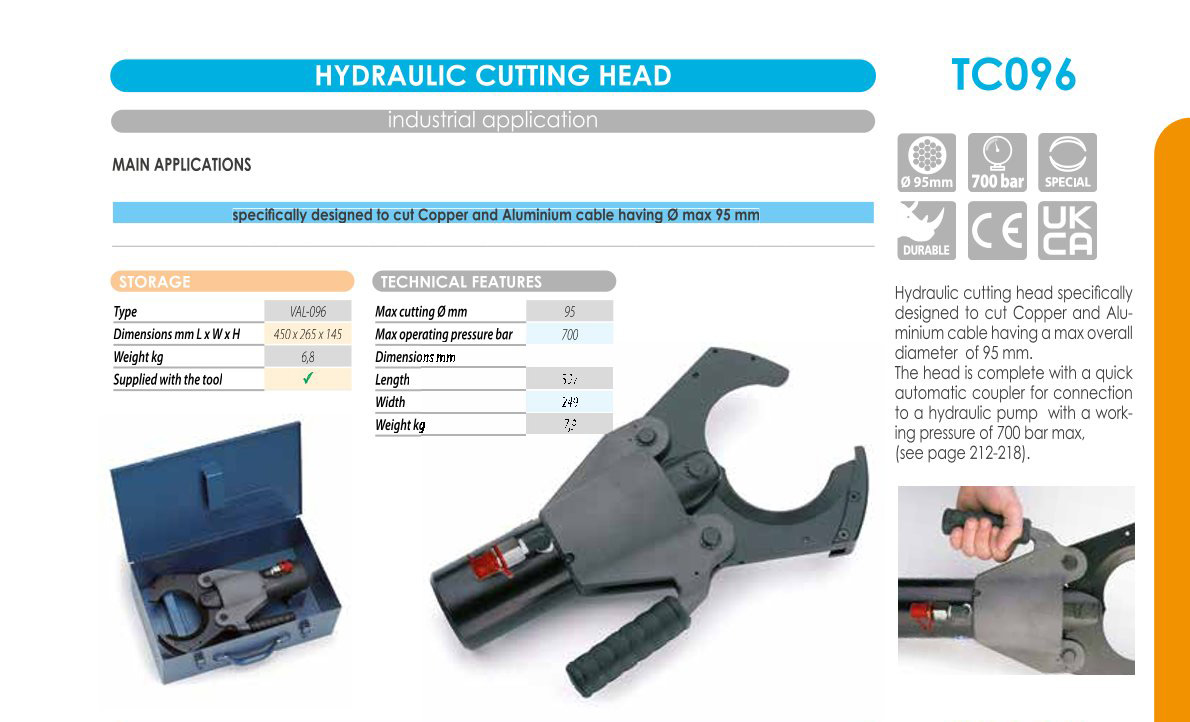

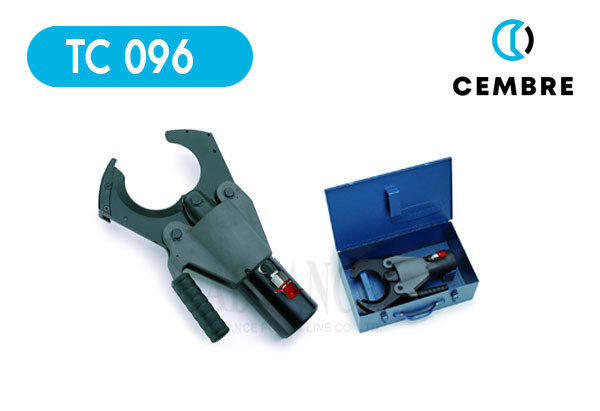

CODE : TC 096 Technical Features : Hydraulic cutting head specifi cally designed to cut Copper and Aluminium cable having a max overall diameter of 95 mm. The head is complete with a quick automatic coupler for connection to a hydraulic pump with a working pressure of 700 bar max, (see page 212-218). Datasheet : Cembre TC 096 |
